Fully Automatic Continuous Foaming Machine

Fully Automatic Continuous Foaming Machine

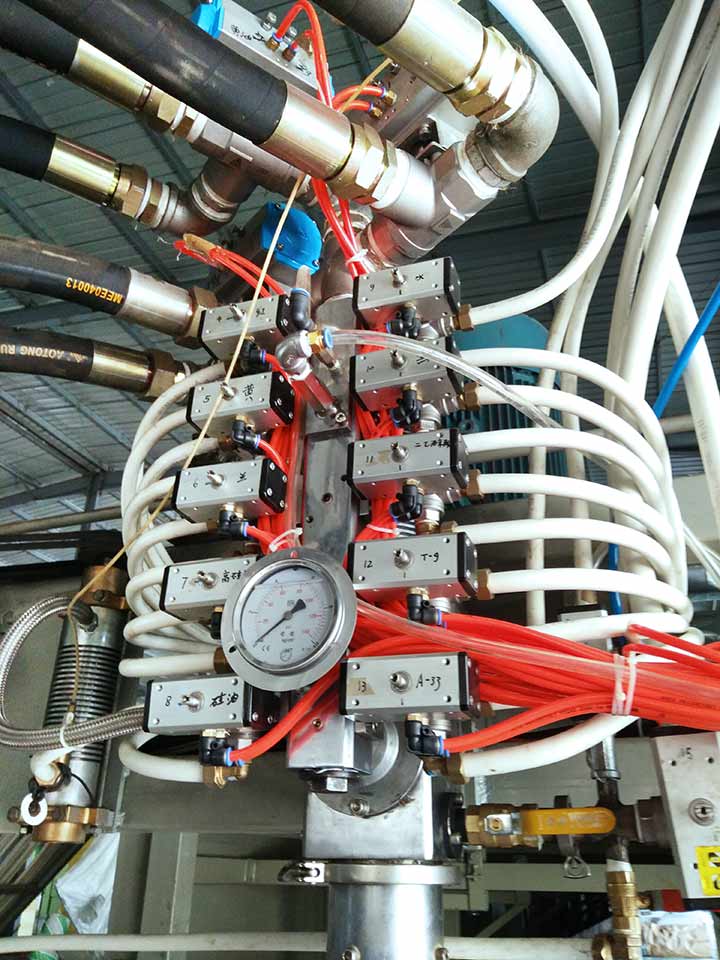

Process：All the P.U.Chemicals are First Mixed Together in a Mixing Chamber & Then Taken into a Metal Trough Where the Initial Reaction takes place. The rising foam then passes from the top of the Trough on to a Variable width Fall Plate, Which then Leads the Expanding Foam Block Along a Metal slat Conveyor for Further Expansion
Outputs:The Machine is Delivers a Maximum of 280kg per Minute
Metering pump: totally 13 sets of metering system equipped with world class AC motor, transducer and variable speed driving device,high-precision pump internal gear pump.

Metering pump: totally 13 sets of metering system equipped with world class AC motor, transducer and variable speed driving device,high-precision pump internal gear pump.

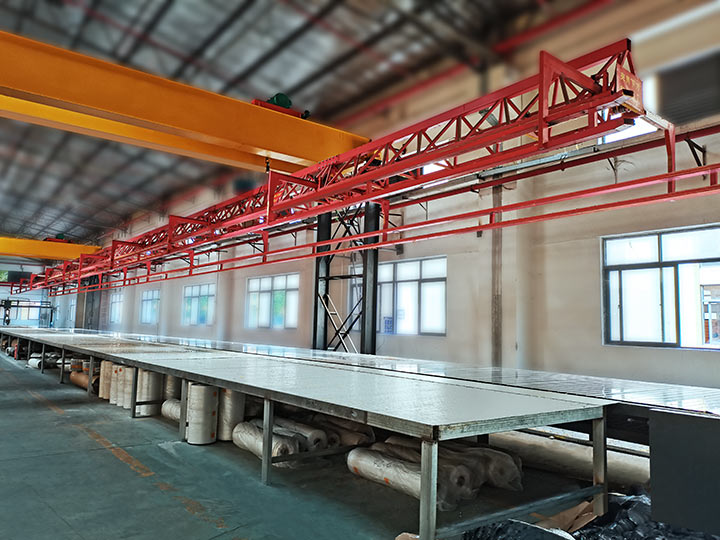

Foaming Tunnel & Conveyor: The Tunnel Construction Forms a Complete Enclosure Around the Foam Slab with top plates, Side Walls & Conveyor Slats. The Conveyor Motor is Also Equipped with AC Speed Drive. Side Walls can be Adjusted From 0.98m～2.4m. The Length of the Conveyor is 18Meters.

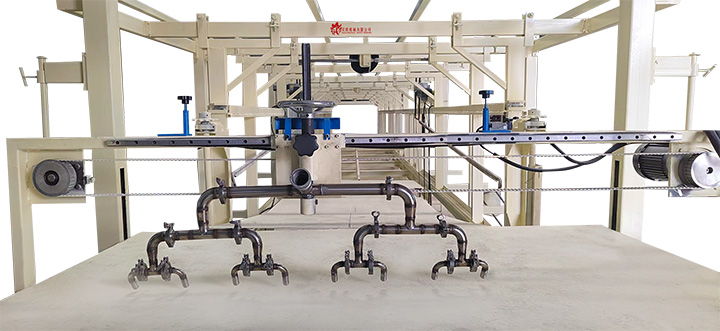

Trough & Fall Plate: The Trough & Fall Plate Section can be Adjusted Height Wise at Various Levels to Ensure More Flattop Blocks & is Equipped with Required Motors & Gearboxes.
Paper Feed & Rewind: This is a 2-paper System. The Bottom Paper Feed Reel is Mounted in Front of the Foaming Platform & is Equipped with Unwinding Motor for Automatic Operation. Rewinding of the Side Papers is at the Other End of the Tunnel & the Rewinding Speed is Self Adjustable to Synchronize With the Conveyor Speed.

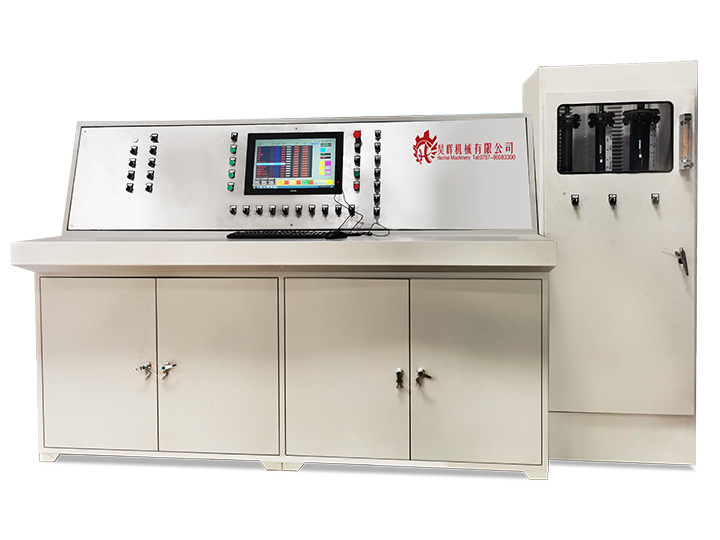

Control Panels：This is Attached at a Convenient Position on the Foaming Platform, It is Equipped with Necessary Electronics, Flow Meters,Pressure Gauges & AC Variable Speed Drives.
