Automatic Horizontal Foam Cutting Machine
HML-113/113A

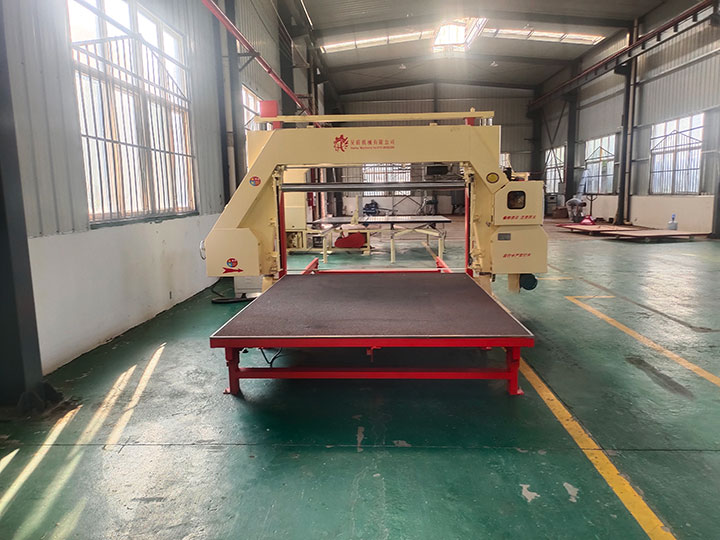

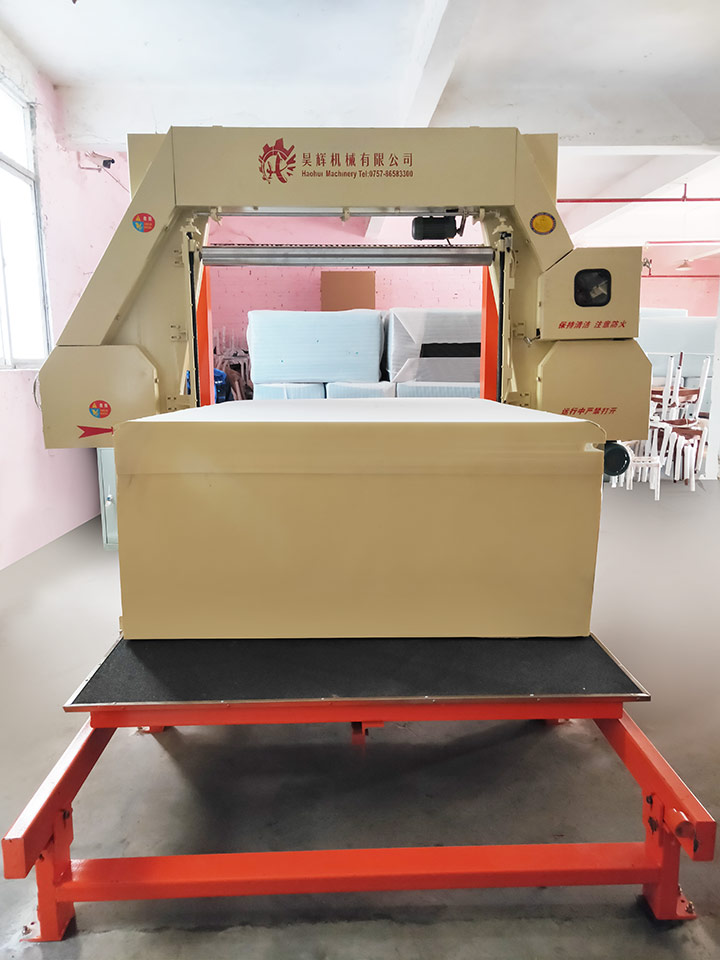

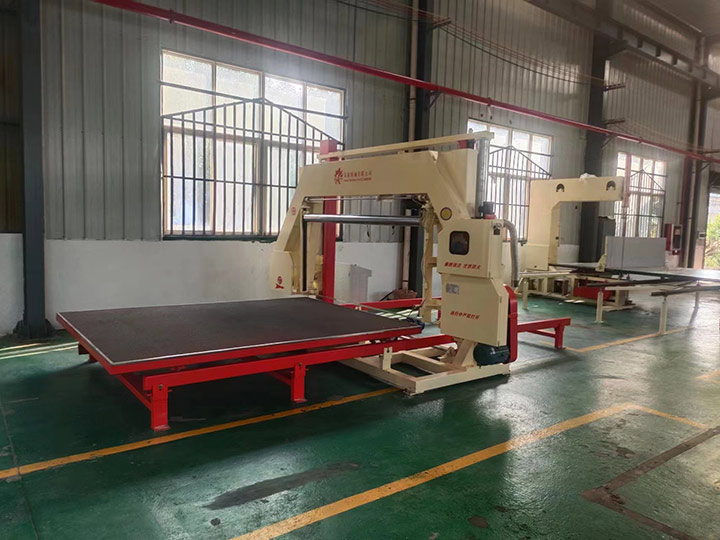

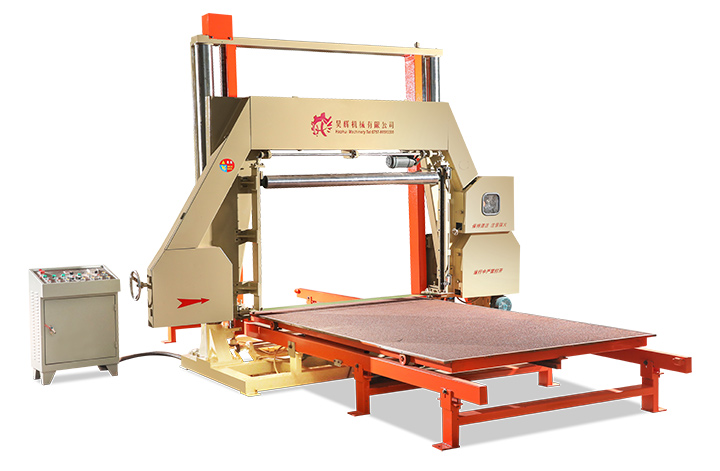

Automatic Horizontal Foam Cutting Machine
TThis machine is mainly used for horizontal back and forth slicing of a single square foam sponge. The workbench adopts automatic digital settings, and values are set through the control box according to the required thickness. To prevent lightweight sponge from sliding, a pressurized roller can be used; Simple operation and precise cutting。
SPECIFICATION:
|
型号 Model |
HML-113 |
HML-113A |
|
切割海绵宽度 cutting sponge width |
W1600xL2000mmxH1200 |
W2100xL3000mmxH1200 |
|
切割厚度 Cutting Speed |
3~150mm |
3mm~150mm |
|
切割速度 Cutting Speed |
0~12m/S |
0~12m/S |
|
刀带长度 Blade length |
L8300xW32x0.45mm |
L9380xW32x0.45mm |
|
机器净重 machine weight |
2100kg |
2500kg |
|
电机总功率 Total Power |
6.44KW |
7.14KW |
|
倾斜电动调节 Tilt electric adjustment |
可选加装 Choose Available |
|
|
外形尺寸 Machine external size |
L5240xW3570xH2500mm |
L6500xW4300xH2500mm |
